LAZR™ Outdoor Video Projector
The all-weather outdoor laser projector for your own AV stack — drive it with MadMapper®, LIGHTFORM®, or any HDMI® / HDBaseT® source. Bring your own player; the weatherproof chassis does the rest.
Bring Your Own Media Player

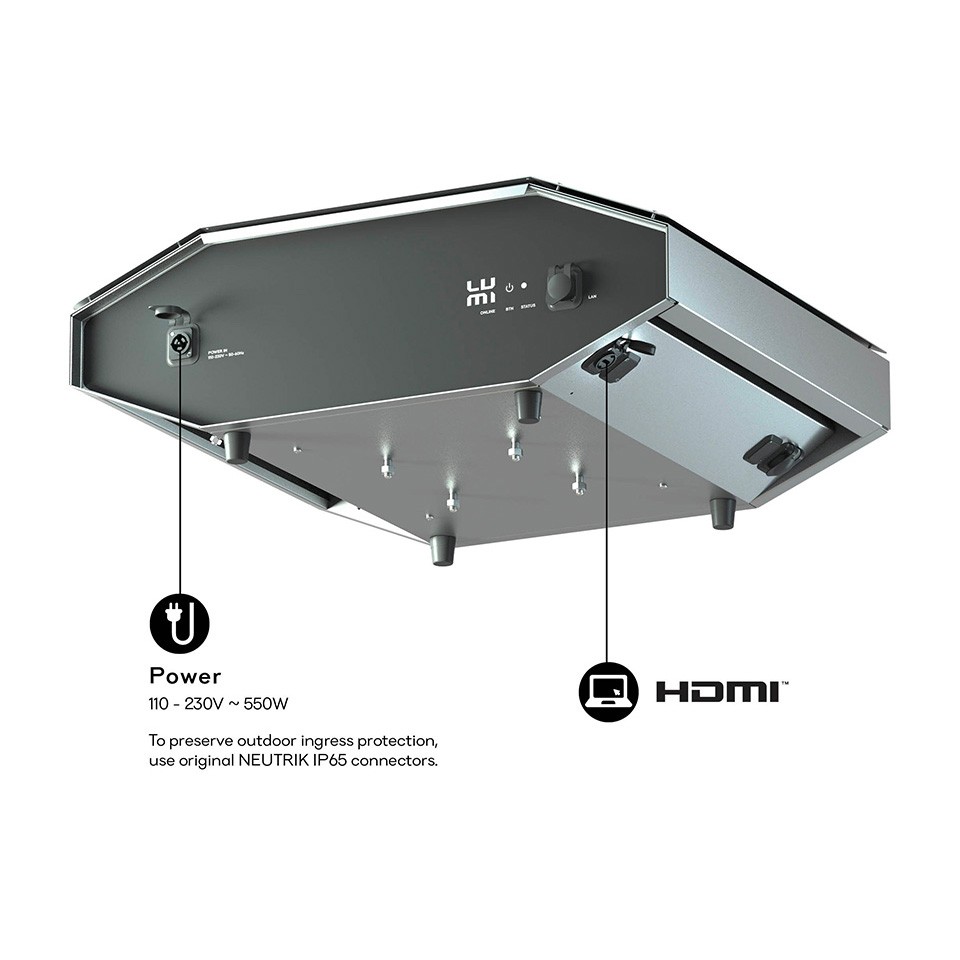

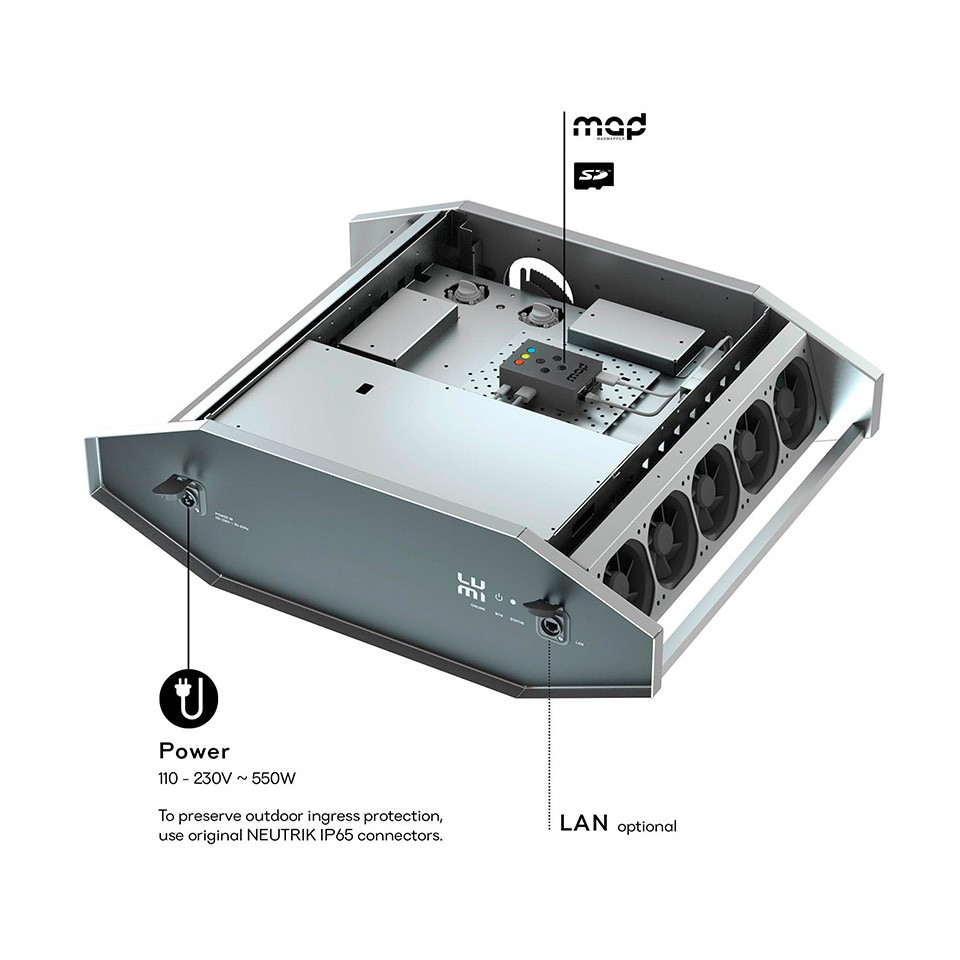

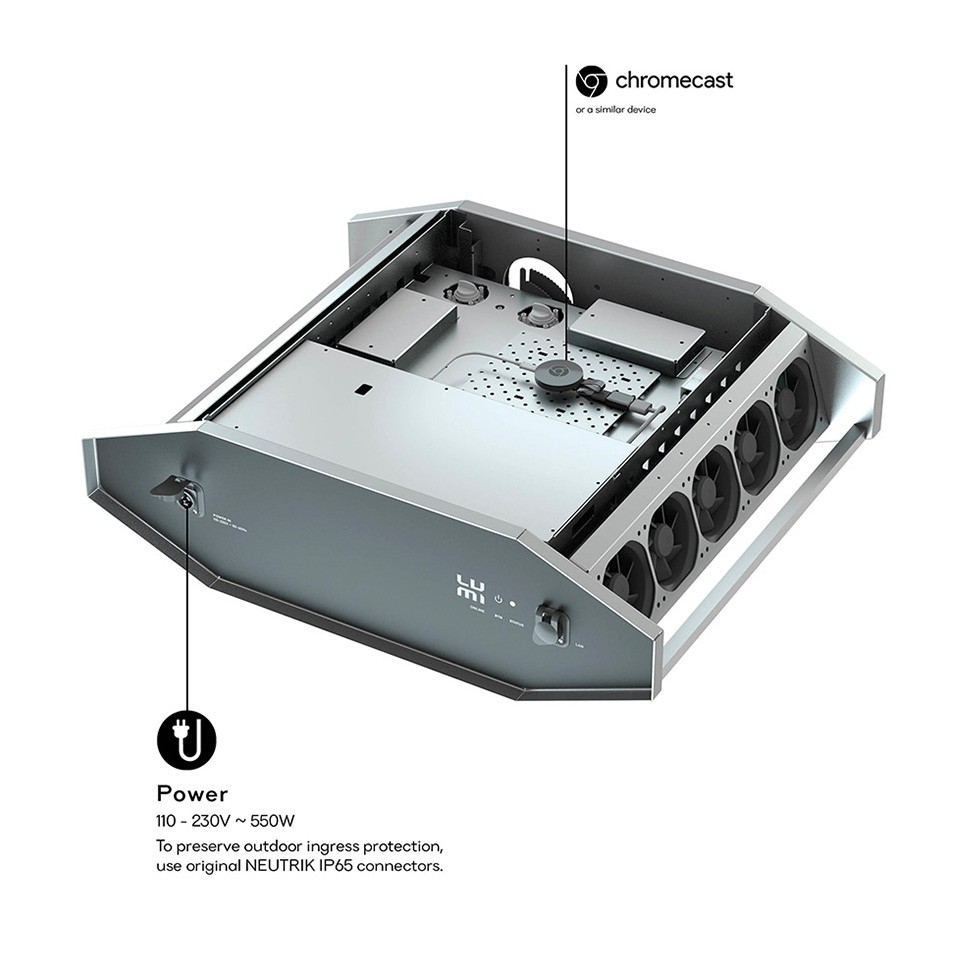

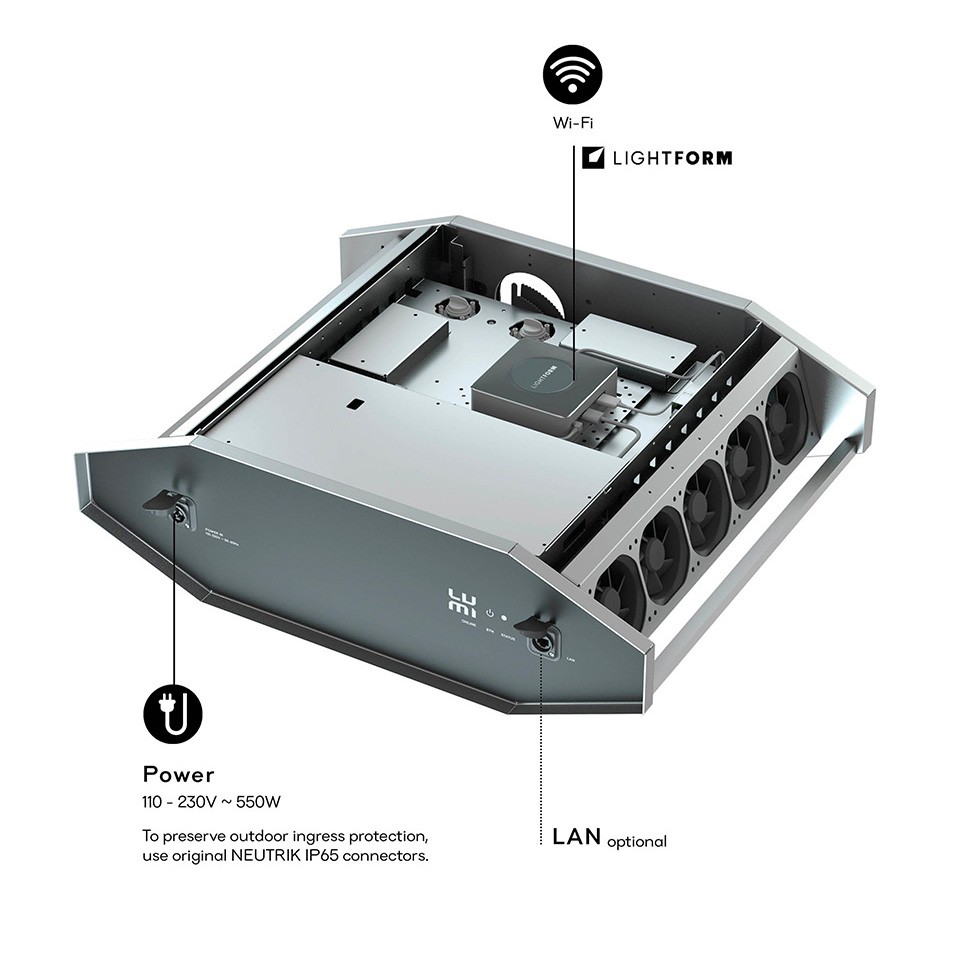

Simply connect the LAZR™ projector to your laptop via HDMI cable and the movie is ready to play. Or use LAZR™ with a variety of standard media players: Chromecast*, MadMapper's miniMAD, Raspberry Pi, Lightform LFC, Intel NUC, and others.

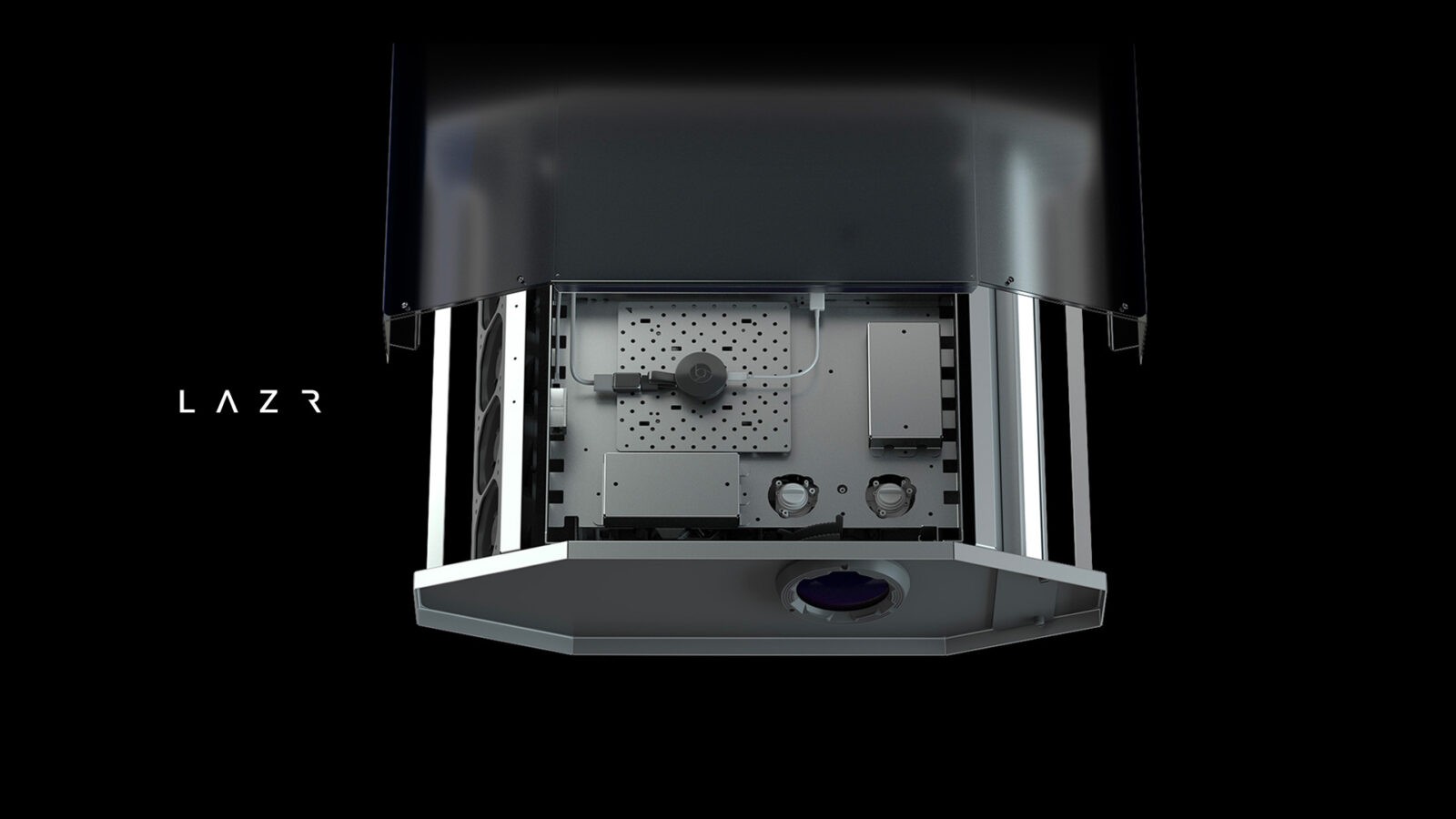

Install your media player inside the LAZR™ Media Player Bay and protect it from humidity, dust, and temperature variance — 5V, 12V, USB, HDMI, and LAN connectors are available inside for simple integration.
*Chromecast Wi-Fi streaming not available in the USA.
IP-Rated for Permanent Outdoor Use
Ingress Protection Certified — body IP43, connectors IP68. A robust body designed for permanent outdoor use in all weather conditions. Made in the Czech Republic, EU.
CE and RoHS certified — see Downloads for certificates.

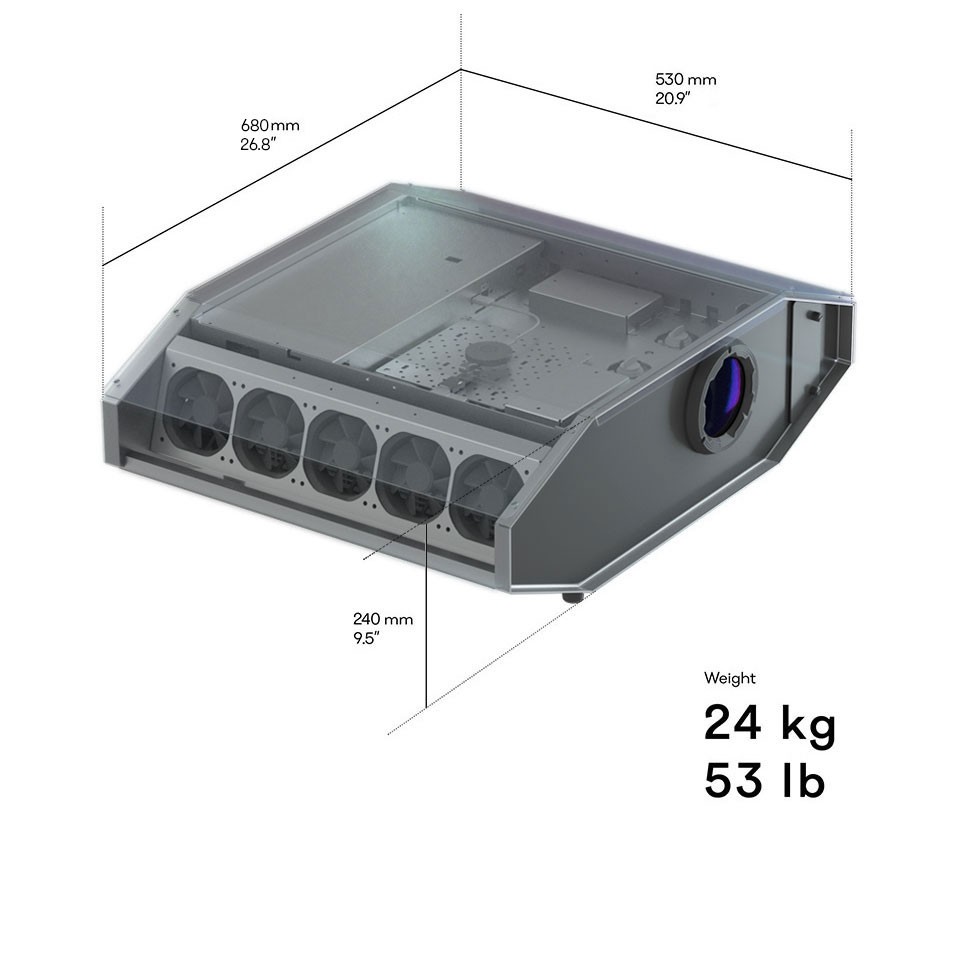

Overview & Dimensions
9.3 in × 21.2 in × 26.5 in (H×W×L), 53 lbs / 24 kg. Compact enough to blend into city environments or tuck away on a rooftop.
Zoom & focus, vertical & horizontal pixel shift, XLR audio output.
Technical Specifications
| Image Projection Technology | ViewSonic Laser DLP |
|---|---|
| Brightness | 6,000 ANSI Lumens |
| Image Resolution | 1920 × 1200 WUXGA |
| Aspect Ratio | 16:10 |
| Light Source Life | 20,000 hours |

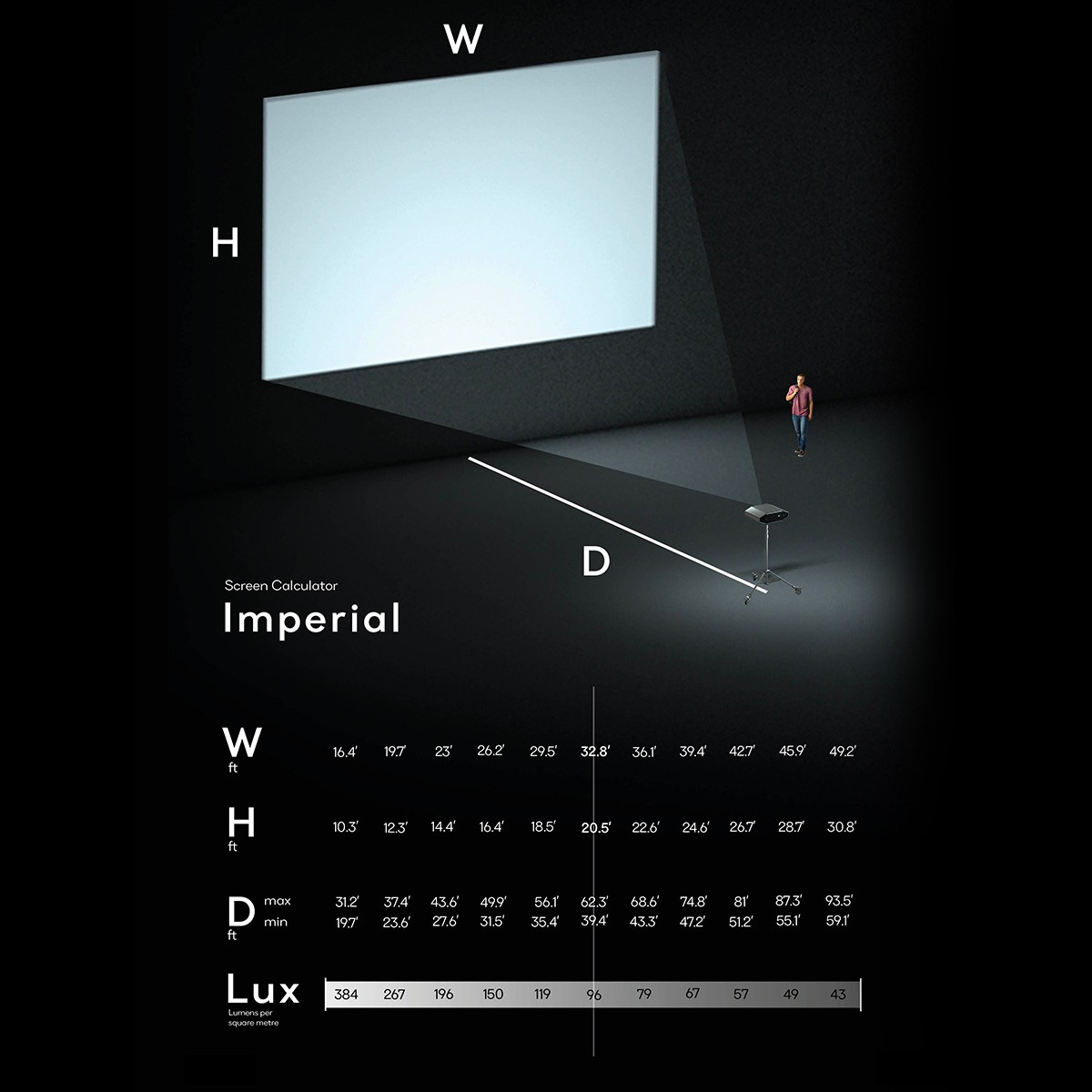

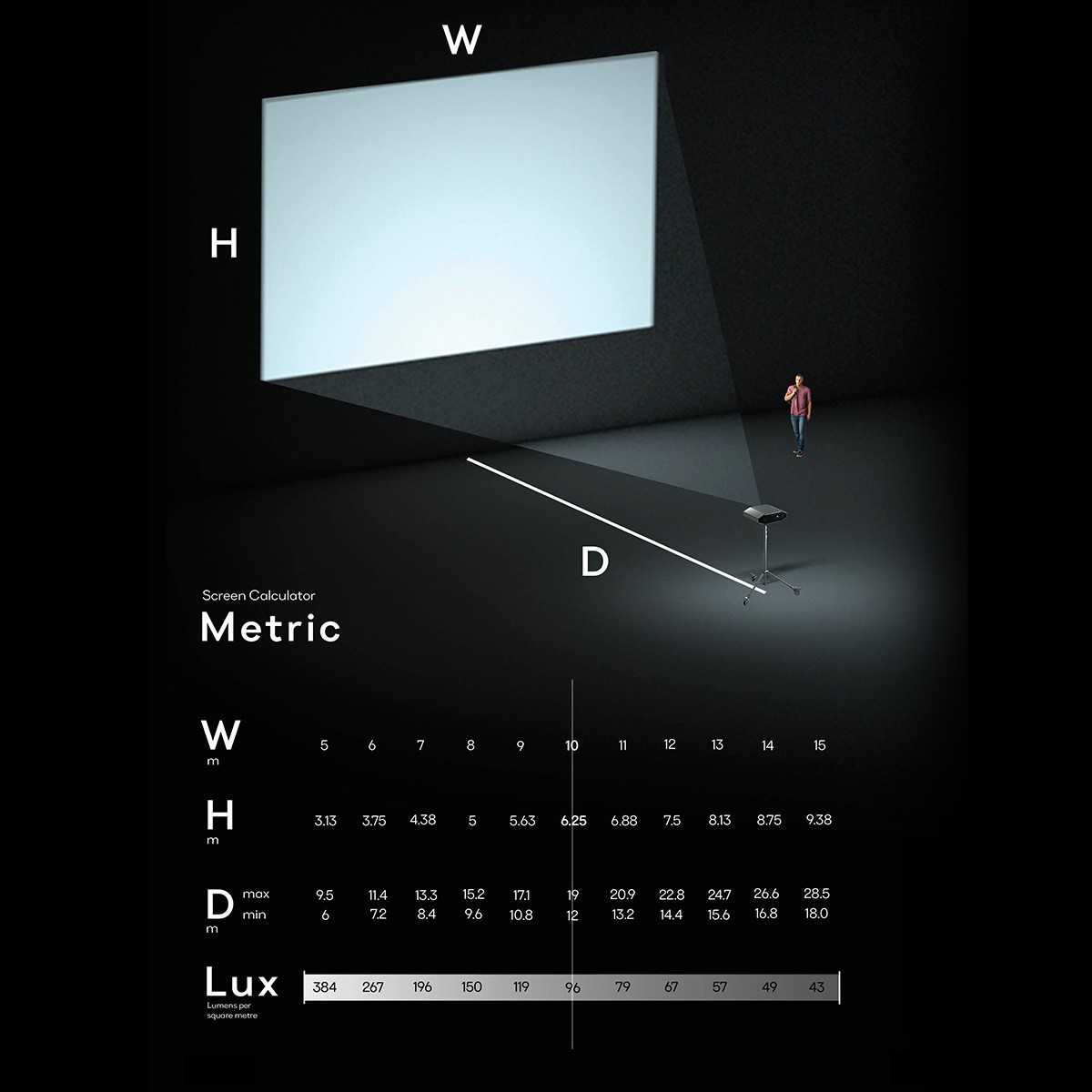

| Throw Ratio | 1.2 – 1.9 |

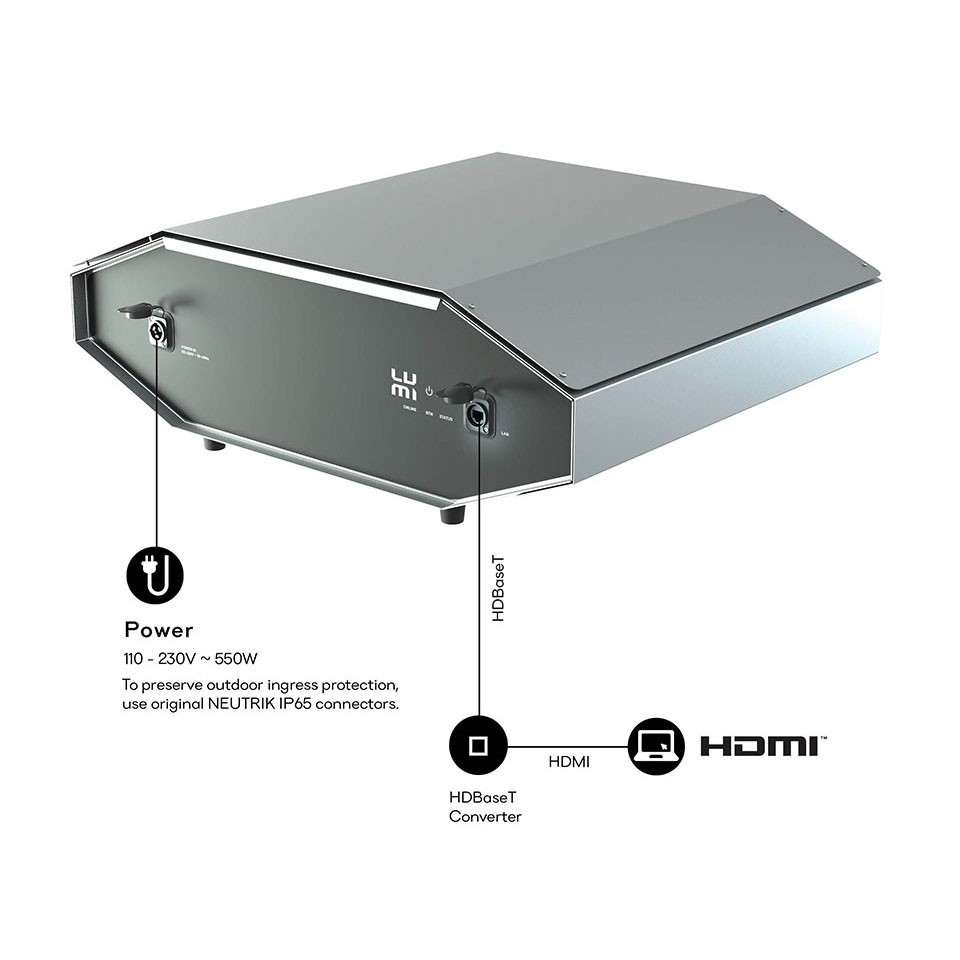

| Video Input | HDMI®, HDBaseT® |
| Control / Data Input | PJLink™, USB 3.0, LAN |
| Wireless Control | IR Controller |
| Power for AV / Computer System | USB DC 5V 3A, DC 12V 10A |
| Ingress Protection | IP43 body, IP68 connectors |
| Overvoltage Protection | Power Supply, LAN |
| Power Consumption (max / standby) | 550 W / 30 W |
| Weight | 53 lbs / 24 kg |
| Dimensions (H×W×L) | 9.3 in × 21.2 in × 26.5 in |
| Operational Temperature Range | -4°F to 113°F / -20°C to 40°C |
| Certification | CE, RoHS |
| Image Orientation | Landscape (Portrait Mode Kit available) |
Order — $20,280
USD pricing with US invoicing. Sold, installed, and supported in North America by Lumitrix USA — the authorized LM3X reseller for the USA, Canada, and Mexico. Shipping and installation quotes on request.
