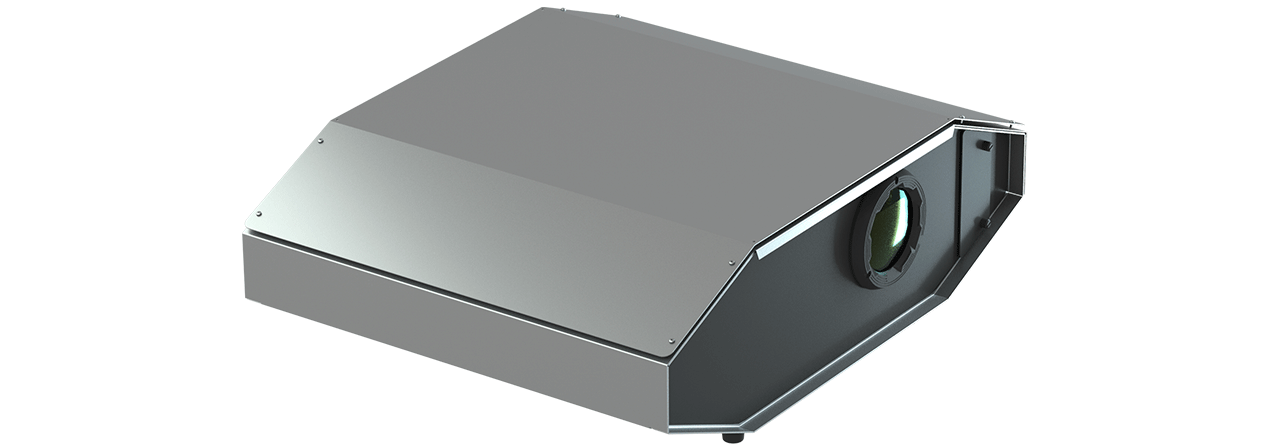

LAZR 4G™ Outdoor Projection Mapping Projector
Professional projection mapping projector for permanent outdoor use — with Lumiverse™ software installed, wireless edge blending, video synchronization, and an object scanner integrated into the lens. A single LAZR 4G™ covers an area of 33′ × 20′ (10 × 6 m) with high-resolution colorful video.
Use it for images, video, facade lighting, advertising, or video mapping projection. Simulate your project with the interactive configurator, or see the detailed software guide.
#1 Pixelmap Scanner
Scan the object and use the output as a background in your animation project — the object scanner is integrated into the lens.
#2 Mapping Tools
Simply map your media onto the illuminated object with the built-in Lumiverse™ tools.
#3 Edge Blending

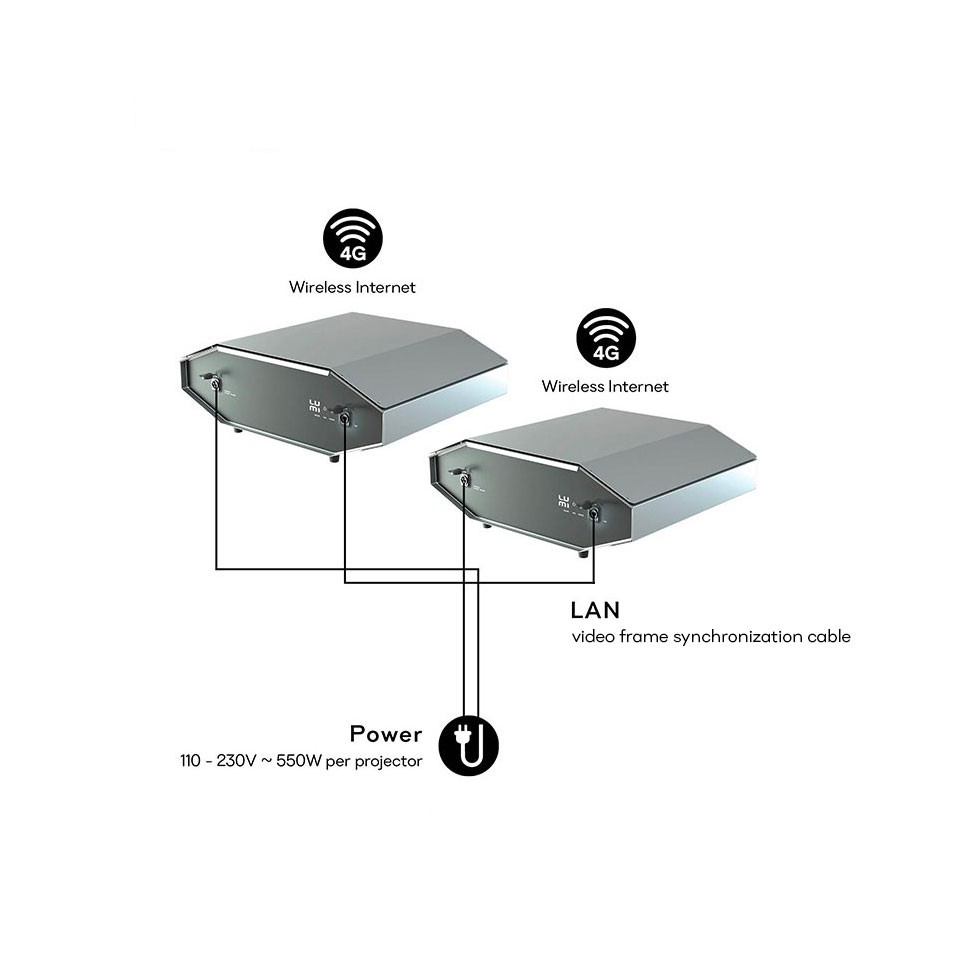

Easily connect multiple LAZR 4G™ projectors into a single seamless screen with wireless edge blending and video synchronization.

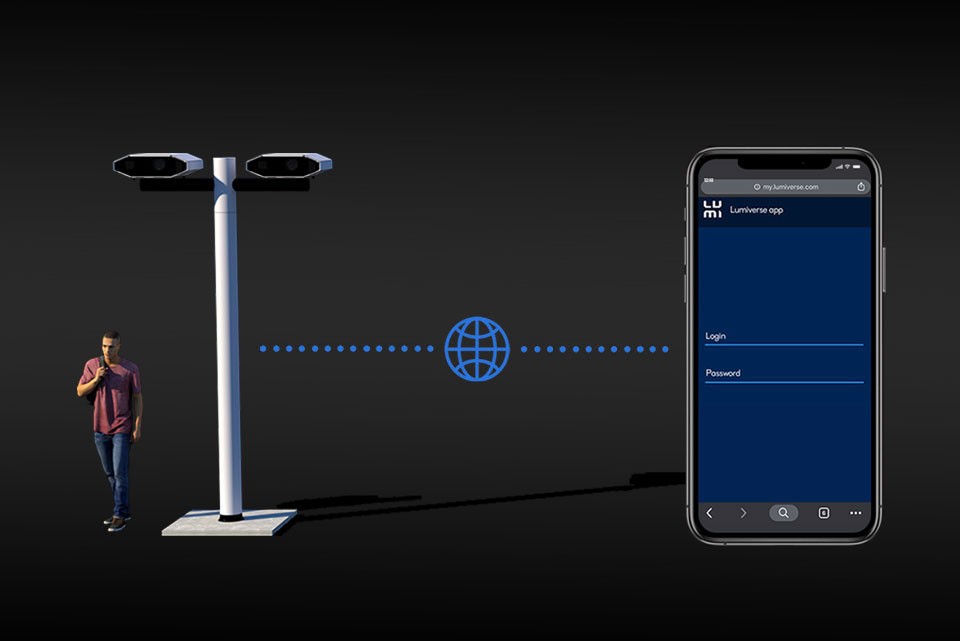

#4 Remote Access
Upload new media and control the projection from an unlimited distance via the embedded mobile internet connection.
#5 Waterproof for Outdoor
This waterproof projector survives outdoors all year long. Ingress Protection Certified — body IP43, connectors IP68, robust body designed for permanent outdoor use in all weather conditions. Made in the Czech Republic, EU.
Tested in extreme weather conditions with great long-term reliability results.
Robust Power Management
Designed for permanent installation reliability: when power is lost, the device goes to sleep — and reboots to operation mode automatically after the power supply is restored.

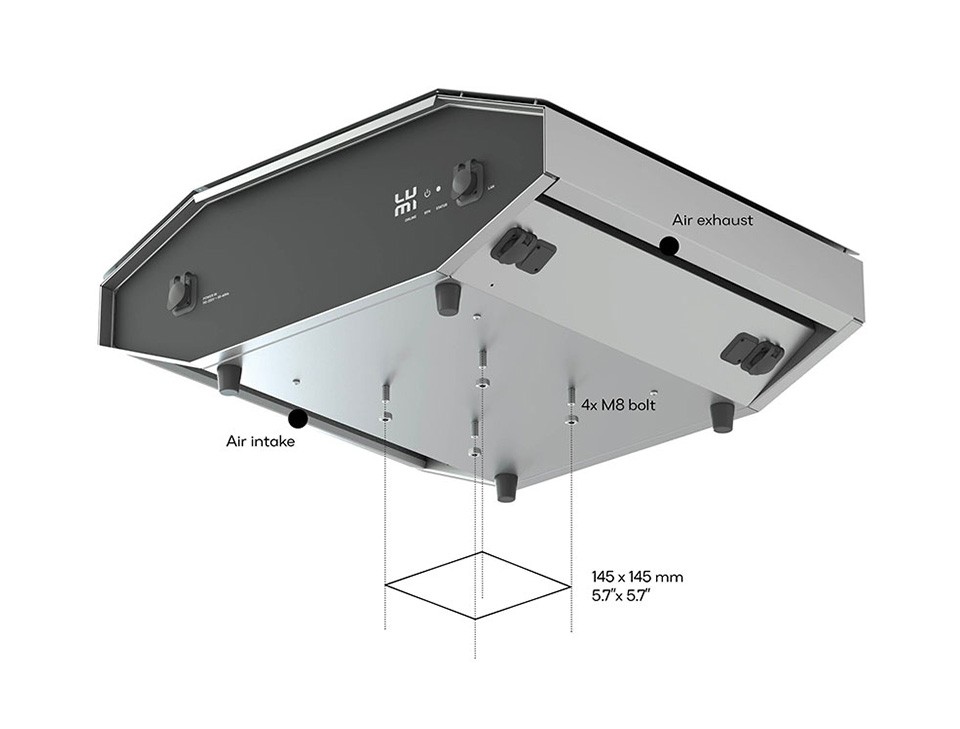

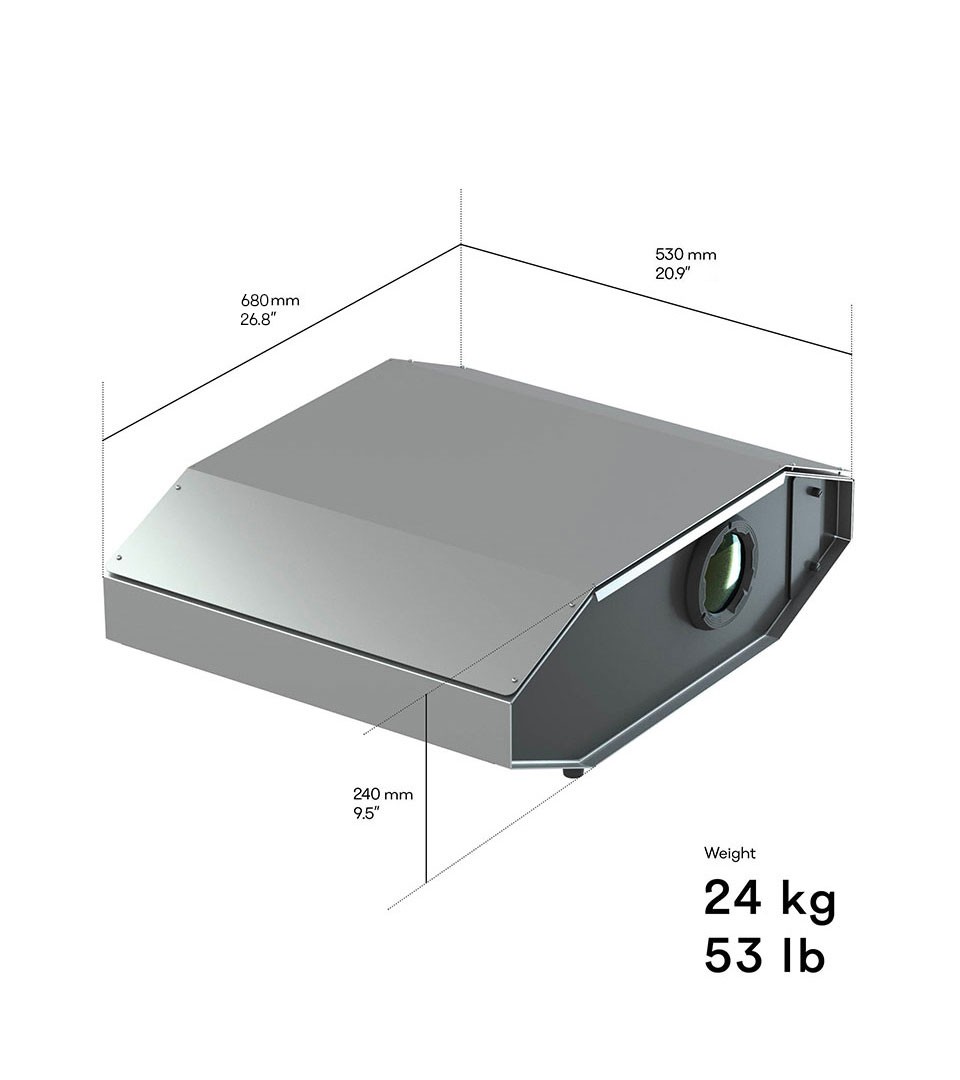

Overview & Dimensions
See It in Action
Technical Specifications
| Image Projection Technology | ViewSonic Laser DLP |
|---|---|
| Brightness | 6,000 ANSI Lumens |
| Image Resolution | 1920 × 1200 WUXGA |
| Aspect Ratio | 16:10 |
| Light Source Life | 20,000 hours |
| Throw Ratio | 1.2 – 1.9 |
| Coverage | Up to 33′ × 20′ (10 × 6 m) per unit |
| Control / Data Input | PJLink™, USB 3.0, LAN |
| Wireless Control | Lumiverse™ OS (4G) |
| Ingress Protection | IP43 body, IP68 connectors |
| Overvoltage Protection | Power Supply, LAN |
| Power Consumption (max / standby) | 550 W / 30 W |
| Weight | 53 lbs / 24 kg |
| Dimensions (H×W×L) | 9.3 in × 21.2 in × 26.5 in |
| Operational Temperature Range | -4°F to 113°F / -20°C to 40°C |
| Certification | CE, RoHS |
| Image Orientation | Landscape (Portrait Mode Kit available) |
| Datasheet | LAZR 4G™ Catalogue PDF |
Order — $29,880
USD pricing with US invoicing. Sold, installed, and supported in North America by Lumitrix USA — the authorized LM3X reseller for the USA, Canada, and Mexico. Shipping and installation quotes on request.
