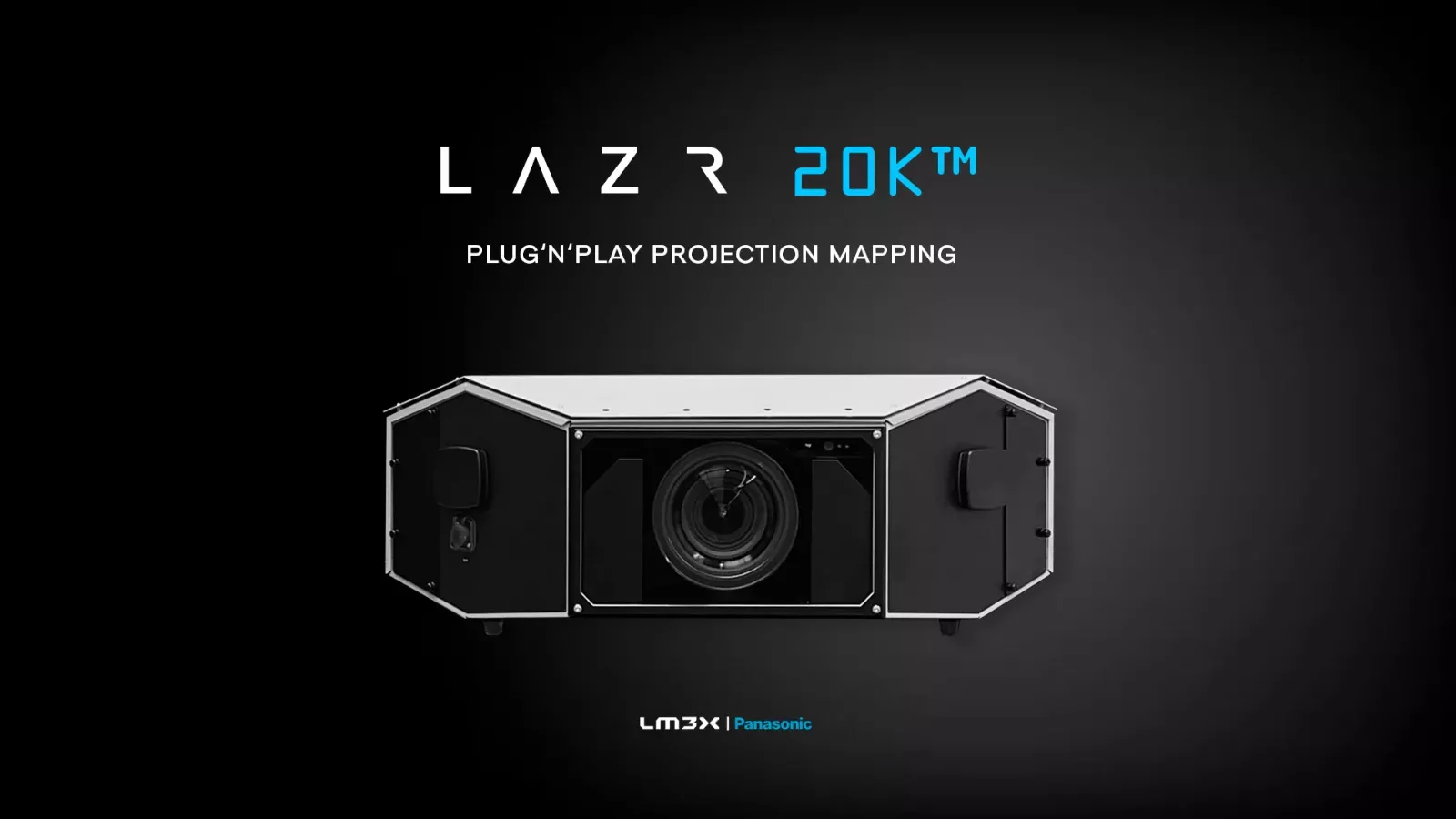

LAZR 20K — LM3X Smart Outdoor Projector
20,000 ANSI lumens of weatherproof projection-mapping power for large facades and landmarks. Projector, media player, wireless modules, mapping scanner, and outdoor enclosure — one plug-and-play unit.
Key Features
- All-in-one plug-and-play — projector, media player, wireless modules, mapping scanner, and outdoor enclosure in a single integrated product
- 20,000 ANSI lumens — vibrant, sharp visuals even in ambient light, for facades and landmarks
- Interchangeable lenses — throw distances from 30 to 330 ft with the Panasonic ET-EMW lens range
- Built-in Lumiverse™ software — edge blending, object scanning, and warping tools
- Remote control from anywhere — integrated 4G-LTE modem with real-time media uploads via the Lumiverse™ web app
- Weatherproof — IP43 body, IP68 connectors, operating range -49°F to +113°F
- WUXGA resolution — 1920×1200 laser DLP with 20,000 hours of maintenance-free operation
- Multi-projector sync — wireless edge blending and video synchronization across LAZR 20K™ groups
- Night-vision object scanner — integrated 5 Mpix scanner generates content pixelmaps of your surface
What's Included
Hardware & Lumiverse™ Software
Complete LAZR 20K™ system with Lumiverse™ video-mapping software and cloud: unlimited-distance remote management, projector grouping, blending, stacking, and long-term scheduling automation.
US Installation & Calibration
Our US-based team handles delivery, mounting, and professional on-site calibration — the same turnkey service praised by our clients. Local invoicing in USD.
3-Year Warranty
LAZR 20K™ warranty of 3 years / 10,000 hours plus a Service License Agreement — honored directly through Lumitrix USA.
Technical Specifications
| Display Type | Panasonic PT-MZ20K Laser 3LCD |
|---|---|
| Brightness | 20,000 ANSI Lumens |
| Contrast | 3,000,000 : 1 |
| Image Resolution | 1920 × 1200 WUXGA |
| Aspect Ratio | 16 : 10 |
| Light Source Life | 20,000 hours |
| Throw Ratio | 0.55 – 7.4 full range (varies by lens) |
| Lens Compatibility | Panasonic ET-EMW300 – 800 lens range |
| Media Player | Intel i5, 400 GB SSD local media storage |
| Audio Out | 2× XLR balanced stereo (L, R) |
| Wireless Control Channels | GSM cellular 4G/5G, Wi-Fi, GPS |
| Alternative Signal Inputs | HDMI, HDBaseT, DMX |
| Integrated Object Scanner | Night vision, 5 Mpix |
| Power | 1,420 W; 100 – 240 V |
| Ingress Protection | IP43 body, IP68 connectors |
| Weight | 110 lb |
| Dimensions (H×W×L) | 12.8 in × 22.24 in × 29.33 in (31.3 in with lens extender) |
| Operating Temperature Range | -49°F to +113°F |
| Survival Temperature Range | -76°F to +158°F |
| Warranty | 3 years / 10,000 hours |
Order — $119,520
USD pricing with US invoicing. Sold, installed, and supported in North America by Lumitrix USA — the authorized LM3X reseller for the USA, Canada, and Mexico. Shipping and installation quotes on request.
“Not only was purchase and delivery seamless and easy, but installation was top-notch. Pavel and his team ensured the projectors were professionally calibrated to the highest standards of quality and clarity.”
Fritz Brown, CFO @Treystar — Digital Mural, Kalamazoo MI
